Factory Supplier 50/60Hz Three-Phase Series 30KW/40KW/50KW/60KG Hybrid Inverter with Battery Protection

Short Description:

Inverter is a converter of DC power (battery, storage battery) into fixed frequency and voltage or FM AC power (generally 220V, 50Hz sine wave). Widely used in air conditioners, home theaters, electric sanders, power tools, sewing machines, DVD, VCD, computers, TVs, washing machines, range hoods, refrigerators, VCRs, massagers, fans, lighting, etc.


Product Detail

Product Tags

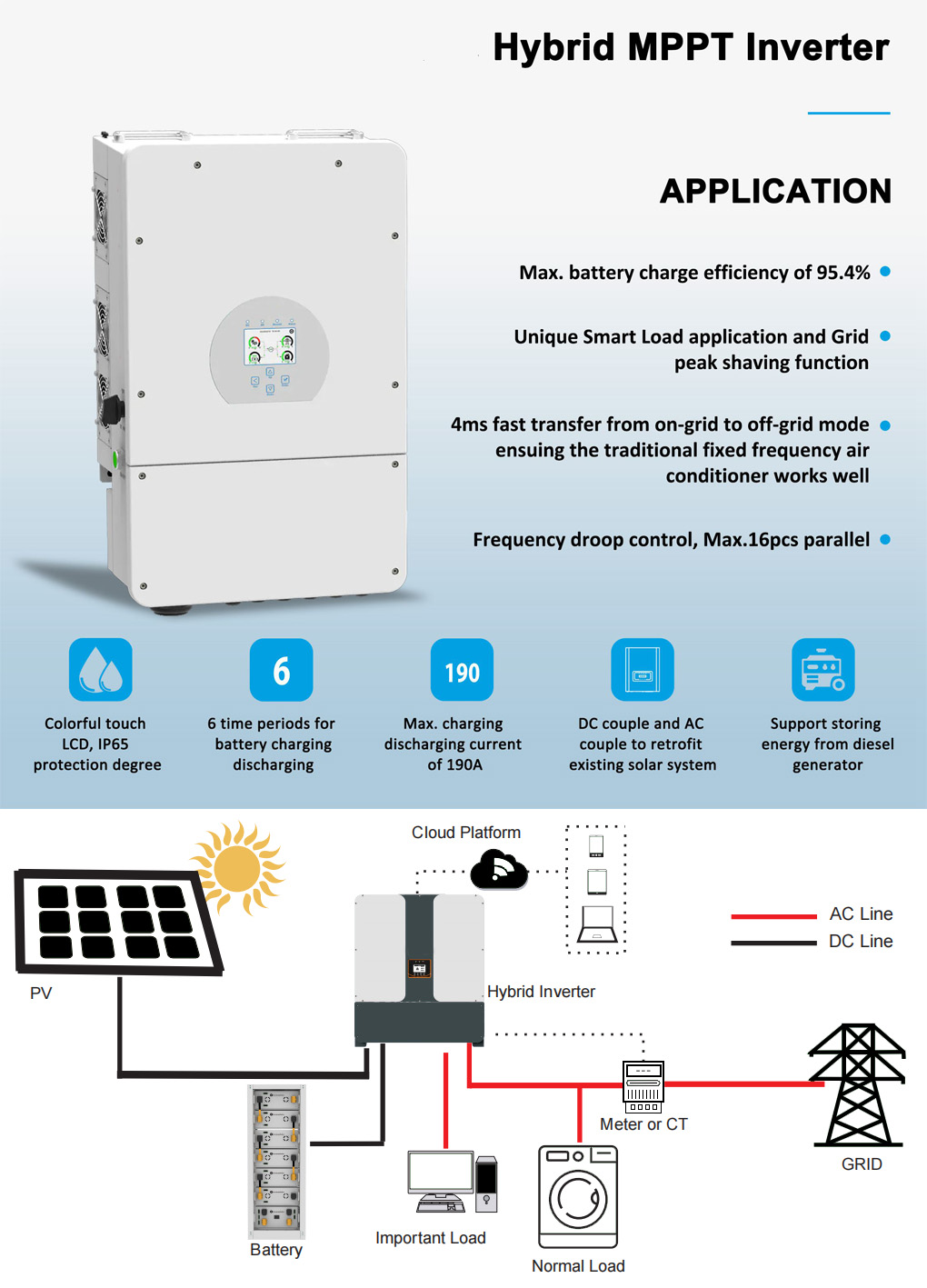

Product Description INVERTER0

Product Features

1.Flexible

Wide input voltage range.

Compatible with lead-acid or lithium-ion batteries or other

battery. Support Parallel to expand power easily

2.PV&Storage System

Integrated PV&Storage System model,

high self-use efficiency,

with UPS(Uninterrupted Power Supply

3.Smart Switching

UPS Function, Supporting three-phase

imbalance, On/Off Grid switch within 10ms

4.Safe&Reliable

IP54 Protection, All Aluminum Design , Built-in Anti-

lightning protection; High Precision Leakage Protection

5.Easy Installation

Easy installation, Wall Mounted or Floor Standing

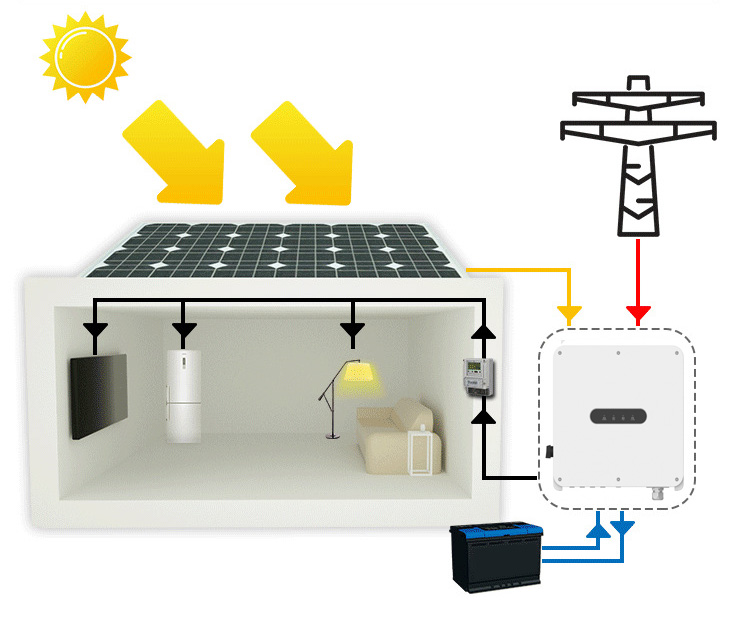

逆变器工作原理

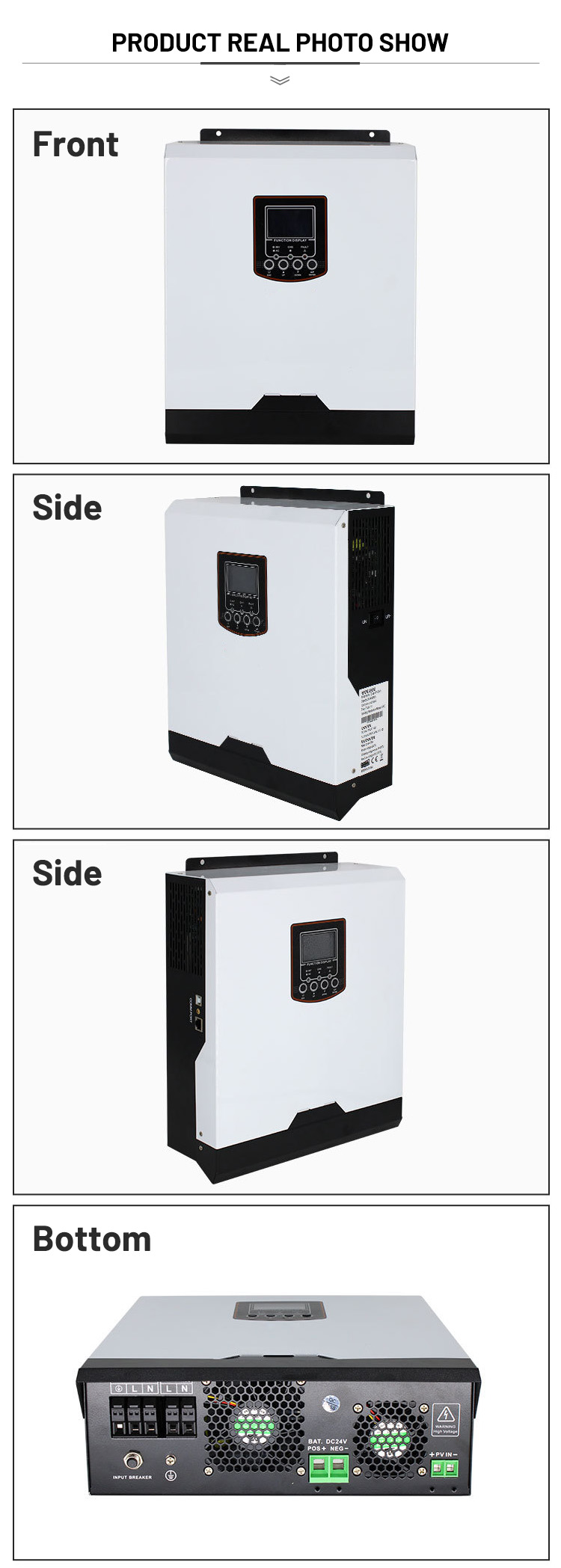

产品实拍展示

Product Specification

Three-Phase Hybrid Series  BH-30KH/40KH/50KH/60KH

Model

BH-30KH

BH-40KH

BH-50KH

BH-60KH

EFFICIENCY

Max Efficiency

>98.2%

>98.2%

>98.2%

>98.4%

PV INPUT

Max. PV input power(W)

36000

48000

60000

72000

Max. PV input voltage(V)

1000

1000

1000

1000

MPP Operation Voltage Range(V)

180-900/630

180-900/630

180-900/630

180-900/630

Number of MPPT/Strings per MPPT

3/2

3/2

4/2

4/2

Max. PV input current(A)

36/36/36

36/36/36

36/36/36/36

36/36/36/36

DC Start Up Voltage

180V

180V

180V

180V

Short-circuit current of PV input(A)

42/42/42

42/42/42

42/42/42/42

42/42/42/42

BATTERY

Max Input/Output Voltage(V)

800

800

800

800

Operating Voltage Range(V)

200-800

180-550

180-700

180-700

Max Charge/Discharge Current(A)

100/100

100/100

100/100

100/100

Max Input/Output Power(W)

30000/30000

40000/40000

50000/50000

60000/60000

Battery Type

Litium/Lead Acid

AC INPUT AND OUTPUT

Rated Power(W)

30000

40000

50000

60000

Max. Apparent AC Power(VA)

30000

40000

50000

60000

Nominal AC Voltage(Vac)

380,3L/N/PE

380,3L/N/PE

380,3L/N/PE

380,3L/N/PE

AC Power Frequency(Hz)

50/60

50/60

50/60

50/60

Max. AC Output Current(A)

45

60

75

87

Power Factor Range

Adjustable from 0.8 leading to 0.8 lagging

OutputTHDi(@Nominal Output)

<3%

<3%

<3%

<3%

OFF-GRID AC OUTPUT(BACK-UP AC OUTPUT )

Rated Output Power(W)

30000

40000

50000

60000

Max. Apparent AC Output Power(VA)

30000

40000

50000

60000

Nominal AC Output Voltage(Vac) AC

380,3L/N/PE

380,3L/N/PE

380,3L/N/PE

380,3L/N/PE

Power Frequency(Hz)

50/60

50/60

50/60

50/60

Max. AC Output Current(A)

45

60

75

87

On/Off Grid Switching Time

10ms

10ms

10ms

10ms

PROTECTION

AC Over Current Protection

YES

YES

YES

YES

Ground Fault Detection Protection

YES

YES

YES

YES

Power Grid Monitoring Protection

YES

YES

YES

YES

Residual Current Detection Protection

YES

YES

YES

YES

GENERAL DATA

Operating Temperature Range

-25°C ...+60°C(>45°C derating)

Operating Altitude(m)

<4000

<4000

<4000

<4000

Noise(dB)

≤40

≤40

≤45

≤45

Topology

Transformerless

Cooling Method

~ Fan

Ingress Protection Rating

IP54

Relative Humidity

5-90%, no condensation

DC Interface Type

Plug-in Terminal

AC Interface Type

Terminal Block

Display

LCD

Communication With Potral

RS485 (WiFi/GPRS Optinal)

Communication With BMS

CAN

Communication With Meter

RS48

Mounting Method

Wall-mounting/Floor Standing

Dimensions (W*H*D)(mm)

800*600*280mm

Weight(Kg)

50kg

 Production Lines

 工厂展示

逆变器应用

Packing & Delivery

 逆变器包装

Professional Packing: Carton, Wooden Pallet and Wooden Box.

By Express

TNT, DHL, FedDex, UPS available

By Air

Shenzhen/Shanghai or other Designated Airport

By Sea

Shenzhen, Shanghai, Ningbo or other Designated Port in China
