China OEM Hdpe Geocell Slope Protection - Non-woven Geotextiles For Isolate Construction Materials – Beihai Detail:

Product Introduction:

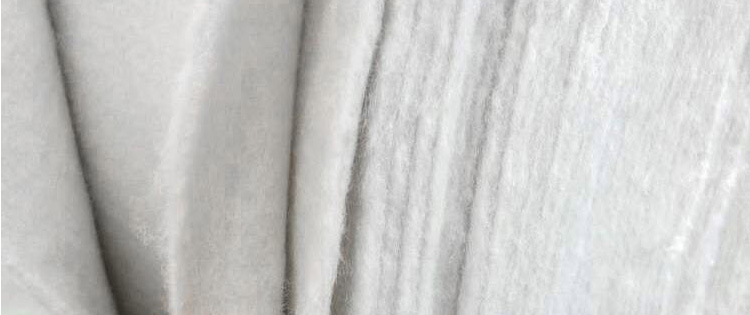

Non-woven Geotextiles (also known as permeable geotextiles, filter geotextiles, non-woven geotextiles), and divided into short fiber needled geotextiles and polyester filament geotextiles, gram weight in 100g-1200g, geotextiles is a nonwoven and industrial cloth.  The permeable geosynthetics are made by the process of non-woven production equipment, such as loosening, carding, cluttering (short fibers interwoven together), netting (normalized entangling and fixation), and needling.

non-woven geotextiles-2

Product Features:
1. Non-woven Geotextile is used to isolate construction materials with different physical properties (particle size, distribution, consistency and density, etc.), such as soil and sand, sand and gravel, soil and concrete, etc
2. Filtration when water from the fine soil into the coarse soil, the use of geotextile good air permeability and water permeability, so that water through
3. Drainage It can form a drainage channel in the soil structure, the soil structure of the excess liquid and gas out
4. Reinforcement using geotextile to enhance the tensile strength and anti-deformation ability of soil, enhance the stability of building structure, to improve the quality of soil

Product Features-2

Product Specification:
There are two kinds of Non-woven Geotextile:
1.PET Long Filament Geotextile

PET Long Filament Geotextile Performance Parameter
Item Technical specifications
Breaking strength KN/m 4.5 7.5 10 15 20 25 30 40 50
1 Longitudinal and transverse breaking strength KN/m≧ 4.5 7.5 10 15 20 25 30 40 50
2 Longitudinal and transverse standard strength corresponds to elongation % 40-80
3 CBR Bursting strength /KN≧ 0.8 1.6 1.9 2.9 3.9 5.3 6.4 7.9 8.5
4 Longitudinal and transverse tearing strength/KN≧ 0.14 0.21 0.28 0.42 0.56 0.70 0.82 1.1 1.25
5 Effective aperture O90(O95)/mm 0.05-0.20
6 Vertical permeability coefficient cm/s Kx(10-1~10-3),K=1.0-9.9
7 Thickness mm≧ 0.8 1.2 1.6 2.2 2.8 3.4 4.2 5.5 6.8
8 Width deviation % ±0.5
9 Mass deviation per unit area % ±5
Specifications fracture strength, the actual specifications between the adjacent specifications in the table, according to the linear interpolation method to calculate the corresponding assessment indicators, beyond the scope of the table, the assessment indicators are determined by mutual agreement between supply and demand
When the actual breaking strength is lower than the standard strength, the elongation corresponding to the standard strength is not judged as conformity
Standard values by design or negotiation

2.PP/PET Short Fiber Geotextile:

PP/PET Short Fiber Geotextile Performance Parameter
Item Technical specifications
Breaking strength KN/m 3 5 8 10 15 20 25 30 40
1 Longitudinal and transverse breaking strength KN/m≧ 3 5 8 10 15 20 25 30 40
2 Longitudinal and transverse standard strength corresponds to elongation % 20-100
3 CBR Bursting strength /KN≧ 0.6 1.0 1.4 1.8 2.5 3.2 4.0 5.5 7.0
4 Longitudinal and transverse tearing strength/KN≧ 0.1 0.15 0.20 0.25 0.40 0.50 0.65 0.80 1.0
5 Effective aperture O90(O95)/mm 0.07-0.20
6 Vertical permeability coefficient cm/s Kx(10-1~10-3),K=1.0-9.9
7 Thickness deviation rate % ±10
8 Width deviation % ±0.5
9 Mass deviation per unit area % ±5
10 Acid and alkaline resistance (Power retention rate) %≧ 80
11 Anti-oxidation performance (Power retention rate) %≧ 80
12 UV resistant performance (Power retention rate) %≧ 80

包装

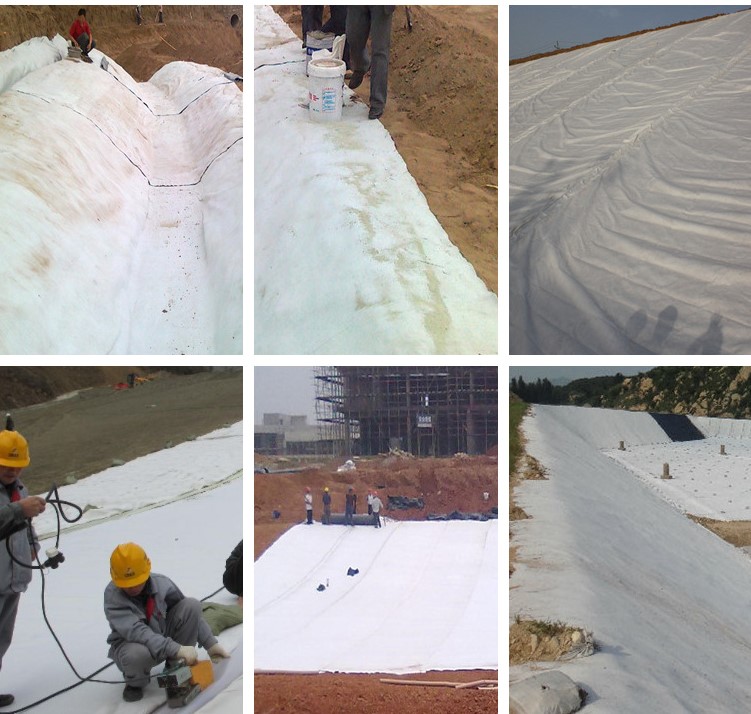

Prodct Application:
Widely used in water conservancy, electric power, mines, roads and railways and other geotechnical engineering:
1.Filter material for soil separation;
2.Reservoir, mine beneficiation drainage materials, high-rise building foundation drainage materials;
3.River embankment, slope erosion materials;
4.Reinforcing materials for roadbed of railway, highway and airport runway, and reinforcing materials for road construction in swamp area;
5.Frost and frost insulation materials;
6.Asphalt road surface crack resistance material.

应用

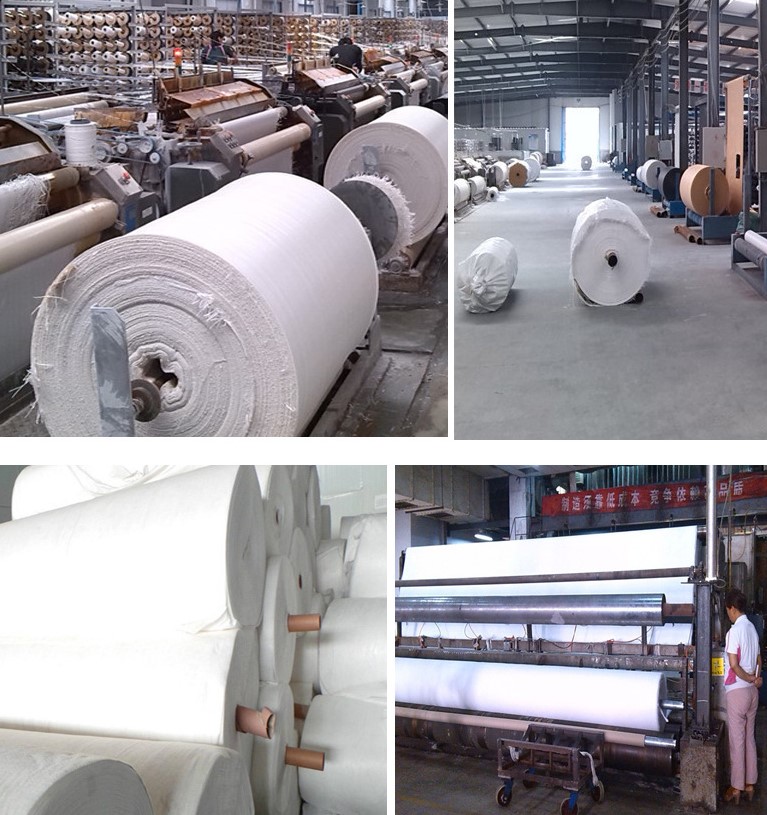

Workgroup
