BMS Powerwall Li-Ion Battery 100Ah 200Ah Home Energy Storage Battery 48V 5KWH 10KWH 30KWH
Product Description:
Powerwall battery system is an integrated lithium ion battery pack. It is very safe with adopting lithium iron phosphate battery technology.

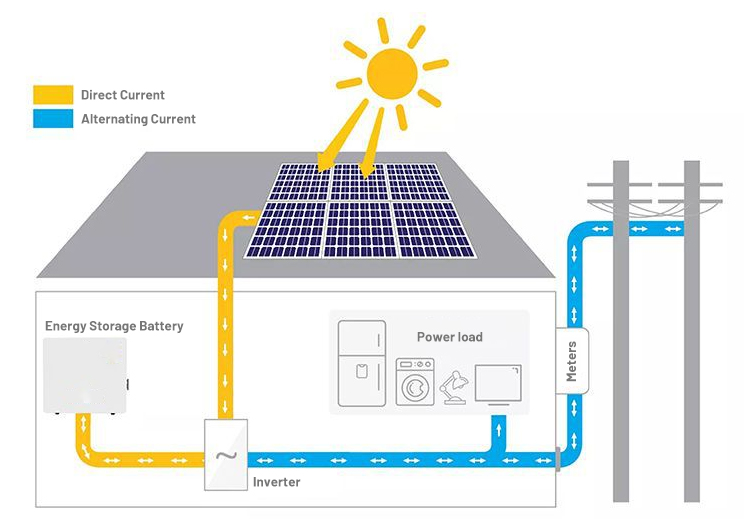

It is a battery that stores energy, detects outages and automatically becomes your home's energy source when the grid goes down.
Product Features:
1. Long life and safety

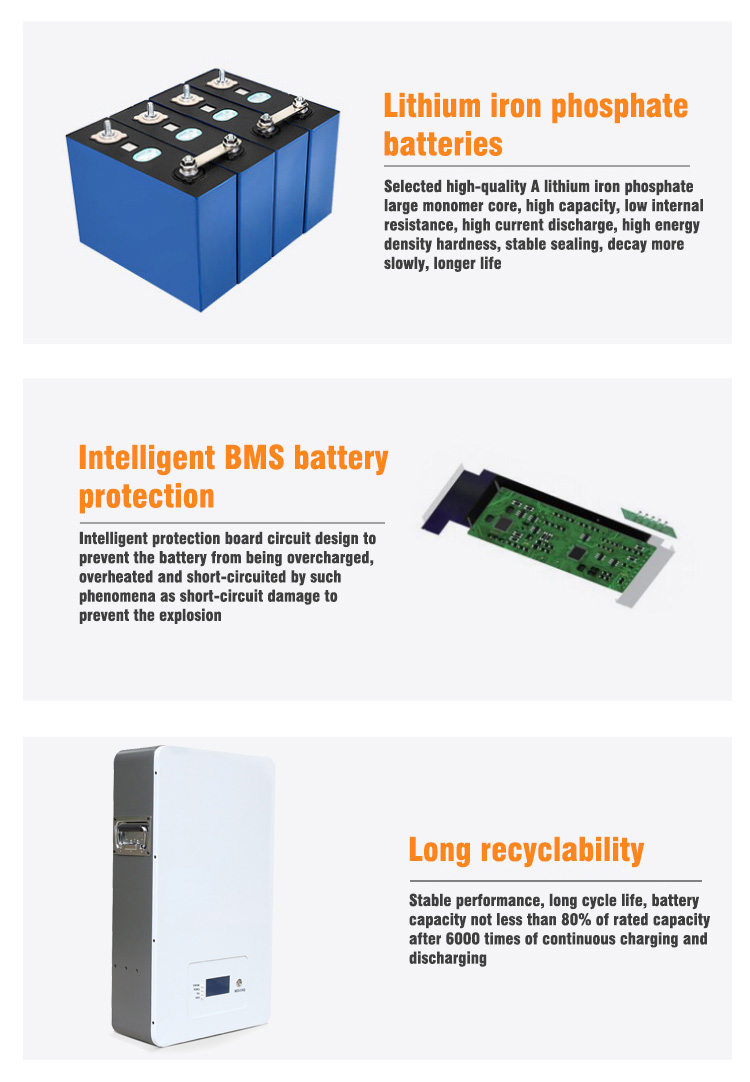

It ensures more than 6000 cycles with 80% DoD. Safe lithium iron phosphate battery cell.
2. Intelligent
Each battery with independent BMS system manages power output smartly and effectively.
3. Modularization
Modular design gives the end customers the power of choice of capacity deliver up to 163KW with single max module (10.24KWh) at 16 pcs parallel connection.
4. Easy to install and use
Just plug and play to minimize the installation time and cost.
5. Fashion design

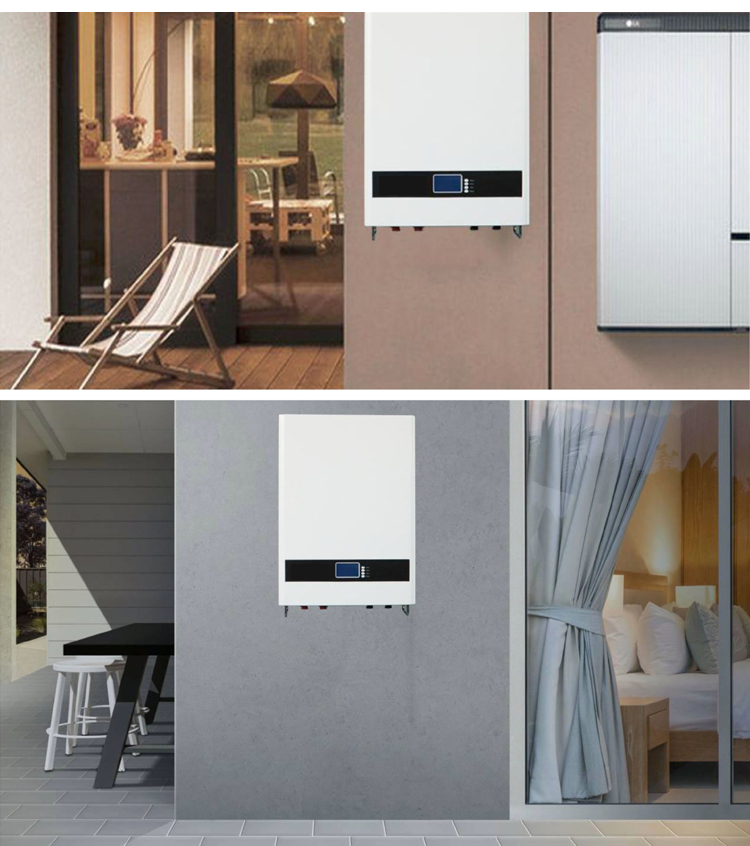

Compact and fashionable design fits in your sweet home environment.
6. Compatiblity
Compatible with most of the available Hybrid inverters.
Battery specifications:
| Product Name | Powerwall Battery |
| Battery Type | Lithium Iron Phosphaste (LiFePO4) |
| Norminal Capacity | 9800-10240Kwh |
| Norminal Voltage | 48-51.2V |
| Battery Pack Charge Voltage | 54-58.4V |
| Max Constant Charge Current | 100A |
| Max Constant Discharge Current | 120A |
| Charge Temperature | 0-60℃ |
| Discharge Temperature | -20-60℃ |
| Storage Temperature | -20-45℃ |
| BMS Protection | Overcurrent, overvoltage, undervoltage, short circuit, over temperature |
| Efficiency | 98% |
| Depth of Discharge | 100% |
| Dimension | 650*480*190mm |
| Operation Cycle Life | Over 4000times |
| Transport Certificates | UN38.3, MSDS |
| Warranty | 10 Years |
| Weight | 100KG |
Product Applications:
The above batteries are widely used in Solar Power Systems, Wind Energy Systems, UPS System(Uninterrupted Power Supply), Telecom Systems, Railway Systems, Switches and Control systems, Emergency Lighting Systems, , and Radio and Broadcasting Stations.
