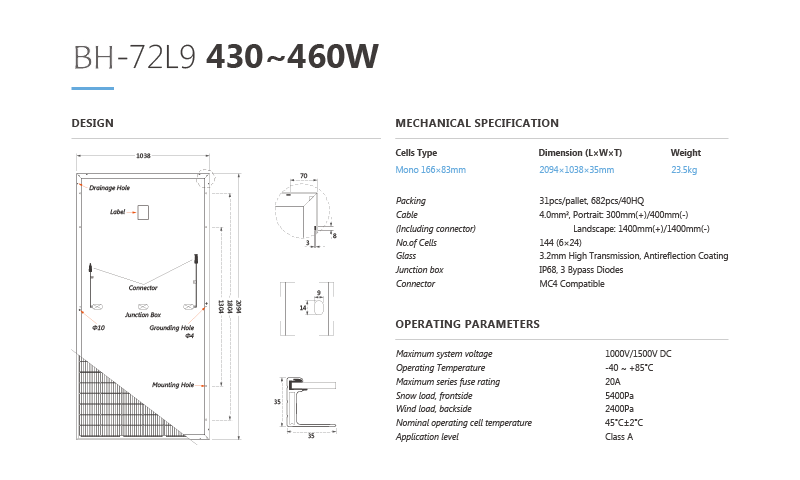

BH Mono Half-Cell/BH-72L9-430W-460W PV Module
144 cells BH-72L9 half cell mono solar panel 430~460W all with A Grade for on-grid & off-grid use for residential and public rooftop & ground mounting PV Power System.
Electrical Charateristics(STC)
|
Module Type |
BH-72L9 |
BH-72L9 |
BH-72L9 |
BH-72L9 |
BH-72L9 |
BH-72L9 |
BH-72L9 |
|
Maximum Power (Pmax) |
430W |
435W |
440W |
445W |
450W |
455W |
460W |
|
Open-circuit Voltage (Voc) |
48.70V |
48.85W |
49.15V |
49.15V |
49.30V |
49.45V |
49.60V |
|
Maximum Power Voltage (Vmp) |
41.51V |
41.66V |
41.81V |
41.96V |
42.11V |
42.26V |
42.41V |
|
Short-circuit Current (Isc) |
11.23A |
11.26V |
11.29A |
11.32A |
11.35A |
11.38A |
11.41A |
|
Maximum Power Current (Imp) |
10.36A |
10.44A |
10.52A |
10.61A |
10.69A |
10.77A |
10.85A |
|
Module Efficiency(%) |
19.78% |
20.01% |
20.24% |
20.47% |
20.70% |
20.93% |
21.16% |
|
Power Tolerance |
0~+5W |
||||||
|
Temperature Coefficient of Isc |
0.05%/℃ |
||||||
|
Temperature Coefficient of Voc |
﹣0.31%/℃ |
||||||
|
Temperature Coefficient of Pmax |
﹣0.35%/℃ |
||||||
|
Standard Test Environment |
Irradiance 1000W/m², Cell Temperature 25℃，Spectrum AM 1.5 |
||||||
Product Characteristics
- Optimal Design Combination 166mm+9BB+Half-cut, higher power output.
- Super Performance & Stable Returns Low current & low hot spot, to ensure module operation optimally.
- Diversified Application Scenarios Strong weather-resistance, suitable for various roof installation.
- Lower LCOE Lower BOS, less installation area.
