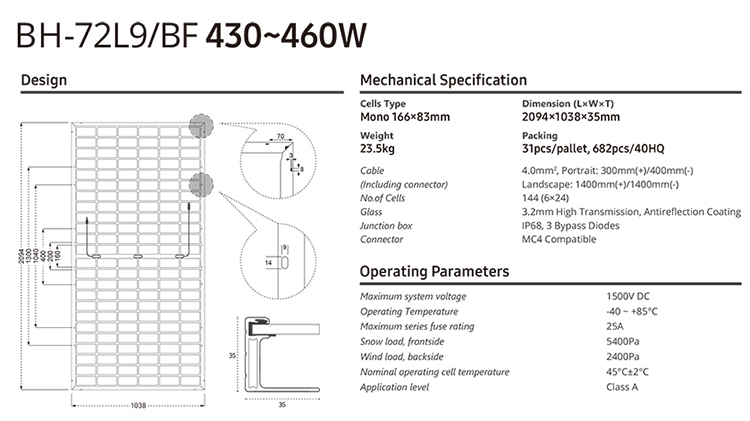

BH-72L9/BF-430~460W Bifacial Half-Cell Solar Panels
Product Details
144 cells BH-72L9/BF-435~465W BH Mono Bifacial Half-cell High Efficiency PV Module all with A Grade for on-grid & off-grid use for residential and public rooftop & ground mounting PV Power System.
|
Electrical Characteristics
|
||||||||
|
BH-72L9/BF
|
||||||||
|
Module Type
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
|
Maximum Power (Pmax)
|
430
|
320
|
435
|
324
|
440
|
327
|
445
|
331
|
|
Open-circuit Voltage (Voc)
|
48.70
|
45.68
|
48.85
|
45.82
|
49.00
|
45.96
|
49.15
|
46.10
|
|
Maximum Power Voltage (Vmp)
|
41.51
|
38.94
|
41.66
|
39.08
|
41.81
|
39.22
|
41.96
|
39.36
|
|
Short-circuit Current (Isc)
|
11.23
|
9.07
|
11.26
|
9.10
|
11.29
|
9.12
|
11.32
|
9.15
|
|
Maximum Power Current (Imp)
|
10.36
|
8.22
|
10.44
|
8.28
|
10.52
|
8.35
|
10.61
|
8.41
|
|
Module Efficiency (STC)
|
19.78%
|
20.01%
|
20.24%
|
20.47%
|
||||
|
STC: Standard Test Environment : Irradiance 1000W/m2, Cell temperature 25°C, Spectrum AM1.5
NOCT: Standard Test Environment : Irradiance 800W/m2, Ambient temperature 20°C, Spectrum AM1.5, Wind speed 1m/s |
||||||||
|
Refer Bifacial Factor: 70±5% Temperature Coefficient of Isc: 0.05%/°C
Temperature Coefficient of Voc: -0.31%/°C Temperature Coefficient of Pmax: -0.35%/°C |
||||||||
|
Electrical Characteristics
|
||||||
|
BH-72L9/BF
|
||||||
|
Module Type
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
|
Maximum Power (Pmax)
|
450
|
335
|
455
|
339
|
460
|
342
|
|
Open-circuit Voltage (Voc)
|
49.30
|
46.24
|
49.45
|
46.38
|
49.60
|
46.52
|
|
Maximum Power Voltage (Vmp)
|
42.11
|
39.50
|
42.26
|
39.64
|
42.41
|
39.78
|
|
Short-circuit Current (Isc)
|
11.35
|
9.17
|
11.38
|
9.20
|
11.41
|
9.22
|
|
Maximum Power Current (Imp)
|
10.69
|
8.48
|
10.77
|
8.54
|
10.85
|
8.60
|
|
Module Efficiency (STC)
|
20.70%
|
20.93%
|
21.16%
|
|||
|
STC: Standard Test Environment : Irradiance 1000W/m2, Cell temperature 25°C, Spectrum AM1.5
NOCT: Standard Test Environment : Irradiance 800W/m2, Ambient temperature 20°C, Spectrum AM1.5, Wind speed 1m/s |
||||||
|
Refer Bifacial Factor: 70±5% Temperature Coefficient of Isc: 0.05%/°C
Temperature Coefficient of Voc: -0.31%/°C Temperature Coefficient of Pmax: -0.35%/°C |
||||||
|
Double-sided power generation parameters (Rear gain)
|
||||||||
|
5%
|
Maximum Power (Pmax)
|
452
|
457
|
462
|
467
|
473
|
478
|
483
|
|
Module Efficiency (%)
|
20.77%
|
21.01%
|
21.26%
|
21.50%
|
21.74%
|
21.98%
|
22.22%
|
|
|
15%
|
Maximum Power (Pmax)
|
495
|
500
|
506
|
512
|
518
|
523
|
529
|
|
Module Efficiency (%)
|
22.75%
|
23.02%
|
23.28%
|
23.54%
|
23.81%
|
24.07%
|
24.34%
|
|
|
25%
|
Maximum Power (Pmax)
|
538
|
544
|
550
|
556
|
563
|
569
|
575
|
|
Module Efficiency (%)
|
24.73%
|
25.02%
|
25.30%
|
25.59%
|
25.88%
|
26.17%
|
26.45%
|
|
First-class solar panel warranty Reliable quality
* 12-Year material & technology warranty
* 30-Year linear power output warranty
* DAH solar linear power output guarantee
* Standard linear power output guarantee
* Max Module Efficiency 21.4%. Product Characteristics
* Up to 20% generation gain from the rear-side
* The grid line transparent back sheet increases the back reflection,and the power generation gain increases with the back light
* More than 25% module weight lighter
* Compared with the dual glass module, the weight is reduced by 25%,which is easy to install and save the cost of BOS
* Low current, low hotspot and better low-irradiance performance,more stable power generation
* Longer power output life span
* Anti PID, low acetic acid concentration,ensure the module linear power output for 30 years
* Strong environmental adaptability
Certified by Dust-Sand, Salt-Mist, Ammonia etc. weather resistance tests
* Select Grade A crystalline silicon solar cellsGrade A crystalline silicon solar cells make high-power output with
cost-effective
* 12-Year material & technology warranty
* 30-Year linear power output warranty
* DAH solar linear power output guarantee
* Standard linear power output guarantee
* Max Module Efficiency 21.4%. Product Characteristics
* Up to 20% generation gain from the rear-side
* The grid line transparent back sheet increases the back reflection,and the power generation gain increases with the back light
* More than 25% module weight lighter
* Compared with the dual glass module, the weight is reduced by 25%,which is easy to install and save the cost of BOS
* Low current, low hotspot and better low-irradiance performance,more stable power generation
* Longer power output life span
* Anti PID, low acetic acid concentration,ensure the module linear power output for 30 years
* Strong environmental adaptability
Certified by Dust-Sand, Salt-Mist, Ammonia etc. weather resistance tests
* Select Grade A crystalline silicon solar cellsGrade A crystalline silicon solar cells make high-power output with
cost-effective
Product packaging
