96V 196V 360V High Voltage Lifepo4 Lithium Ion Battery Cabinet 36KWh 50KWh Storage Batteries for Car

Short Description:

We use phosphates rather than cobalt to avoid environmental concerns, lower the possibilities of thermal runaway because of improper disposal, and save the production cost as well. This kind of solar battery experiences a lower rate of capacity loss. With state-of-the-art power conversion and energy storage technologies, our energy storage system offers high-efficiency power conditioning capabilities for demand management, power dispatch, renewable energy smoothing, etc. It can provide comprehensive energy storage for residential, commercial and utility applications.


Product Detail

Product Tags

Product Description:

We use phosphates rather than cobalt to avoid environmental concerns, lower the possibilities of thermal runaway because of improper disposal, and save the production cost as well. This kind of solar battery experiences a lower rate of capacity loss. With state-of-the-art power conversion and energy storage technologies, our energy storage system offers high-efficiency power conditioning capabilities for demand management, power dispatch, renewable energy smoothing, etc. It can provide comprehensive energy storage for residential, commercial and utility applications.

 高压

Product Features:

1. Long life and safety

It ensures more than 6000 cycles with 80% DoD. Safe lithium iron phosphate battery cell.

2. Intelligent

Each battery with independent BMS system manages power output smartly and effectively.

3. Modularization

Modular design gives the end customers the power of choice of capacity deliver up to 163KW with single max module (10.24KWh) at 16 pcs parallel connection.

4. Easy to install and use

Just plug and play to minimize the installation time and cost.

5. Fashion design

Compact and fashionable design fits in your sweet home environment.

6. Compatiblity

Compatible with most of the available Hybrid inverters.

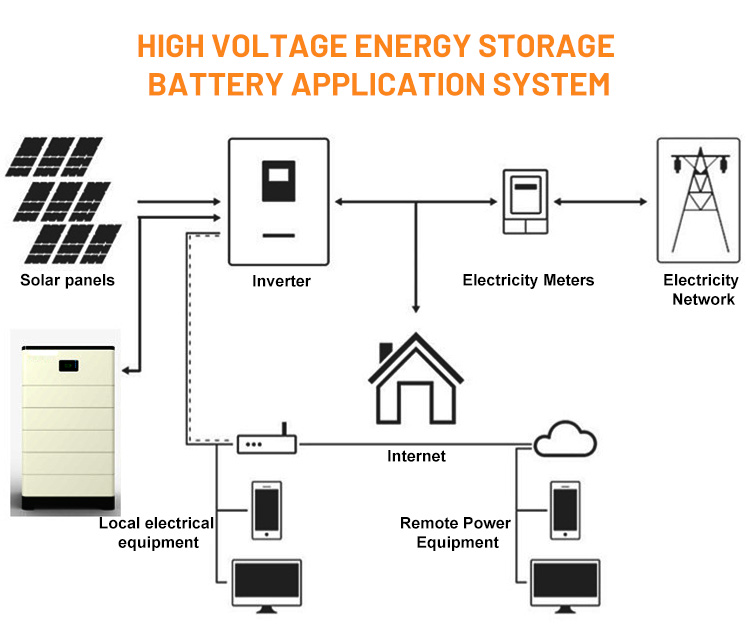

高压应用系统

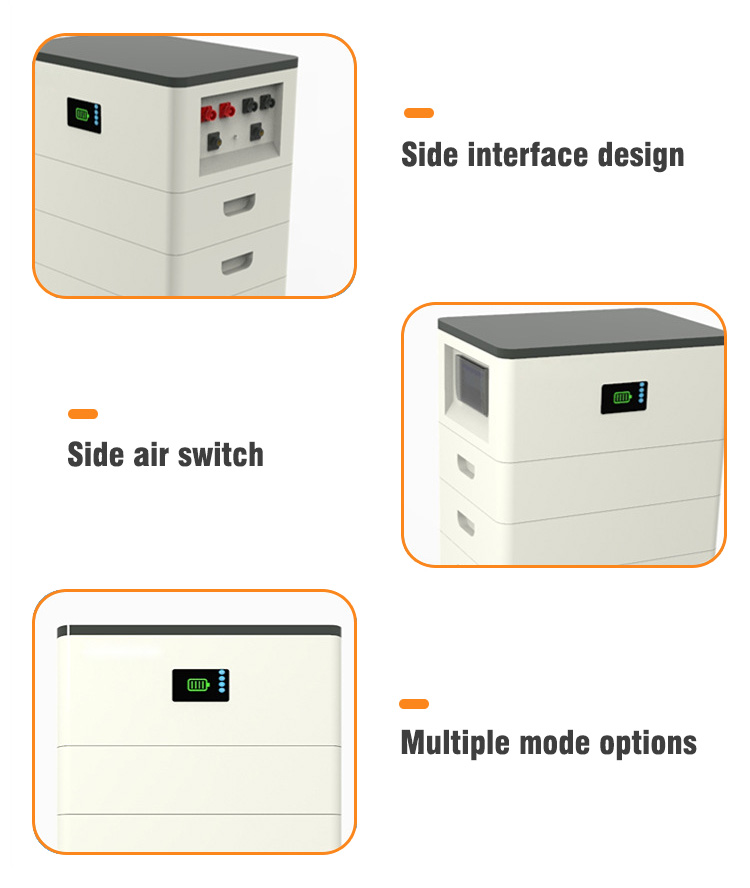

高压细节展示

Battery specifications:

Lithiu Battery Model 96V 100AH 192V 100AH 360V 100AH
Nominal Voltage 96V 192V 360V
Nominal Capacity 9600WH 19200WH 36000WH
Usable Capacity (80% DOD) 7680WH 15360WH 28800WH
Weight (Kg) 200Kg 400Kg 640Kg
Discharge Voltage 75-108V 150-219V 300-400V
Charge Voltage 108V 219V 384V
Charg/ Discharge Current Max Current 100A
Communication CAN/ RS-485
Operating Temperature Range - 10℃ ~ 50℃
Humidity 15% ~ 85%
Product Warranty 10 Years
Design Life Time 20+ Years
Cycle Time 6000+ Cycles
Certificates CE , UN38.3, UL
Compatible Inverter Sinexcel,SMA, GROWATT, DEYE, GOODWE, SOLA X, SOFAR,,,etc

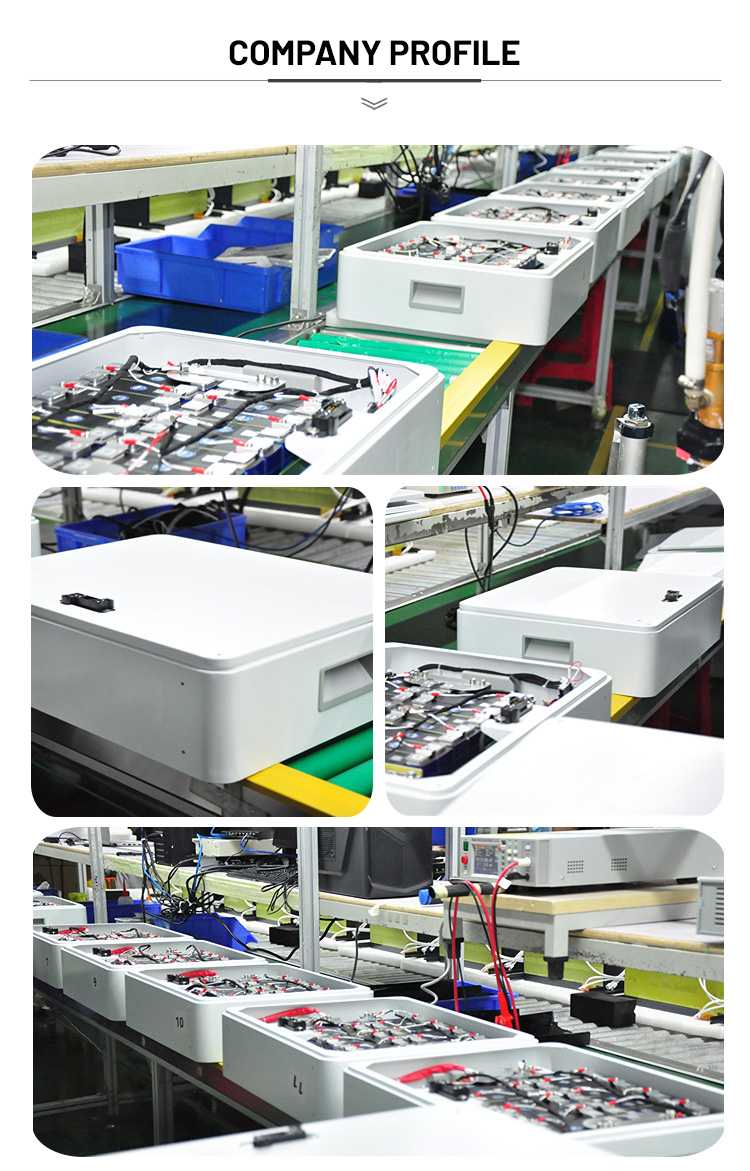

高压工厂展示

Product Applications:

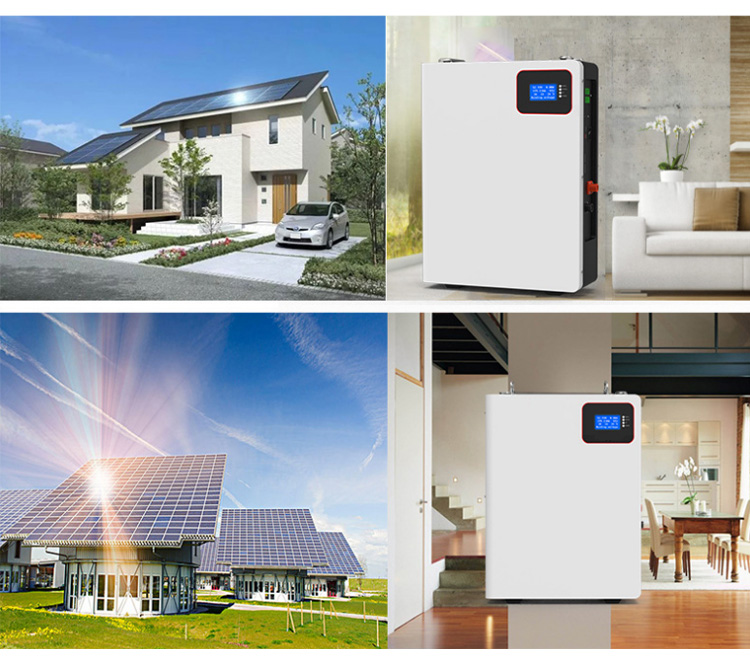

The above batteries are widely used in Solar Power Systems, Wind Energy Systems, UPS System(Uninterrupted Power Supply), Telecom Systems, Railway Systems, Switches and Control systems, Emergency Lighting Systems, , and Radio and Broadcasting Stations.壁挂高压应用壁挂包装
